ASTM Standard Cell Depth 100mm Welding Distance 445mm Erosion Control Geocell 100-445 Ground Stabilisation
Description
1.The Geocell adopts recycled HDPE material, geocell can create a secure and stable surface at slopes or flat areas.
2.Supersonically welded, strong tensile strength, and high lateral restriction is ideal for driveway installations.
3. Specializing in the production and sales of geomaterials. With more than 20 years of production experience,
Key Material Advantages:
High density polyethylene geocell is a lightweight and flexible three-dimensional, expandable panels made from high Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Plastic HDPE Geocell Typical physical properties:
1, Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different geological conditions, such as saline soil, desert, etc.
2, Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
3, Size is relatively stable, change the height and welding distance can meet the needs of different projects.
4, Retractile, easy to transport.
5, Easy to use, can use the local materials and achieve rapid construction, reduce construction costs.
6, Can be used repeatedly
Plastic HDPE Geocell Technical parameter:
| Sheet Thickness, mm | 1.2±0.1/1.7±0.1 | |
| welding distance, mm | 330±2.5~1600±2.5 | |
| Cell Depth,mm | 50,75,100,100,150,200,250 | |
| Properties | Test Method | Value | |
| Material | | HDPE | |
| Standard color | | Black / Green / brown | |
| Surface | | Smooth / Textured | with or without hole |
| Sheet Thickness, mm | ASTM D5199 | 1.2±0.1/1.7±0.1 | |
| Density, g/cm3 | ASTM D792 | >0.94 | |
| Carbon Black Content,% | ASTM D1603 | >2.0 | |
| Low Temperature Brittleness,C | ASTM D746 | <-77 | |
| Environment Stress Crack Resistance,hours | ASTM D1693 | >4000 | |
| Seam Peel Strength,N/100mm depth cell | COE GL-86-19 | 1000~1450 | |
Plastic HDPE Geocell Potential Applications:

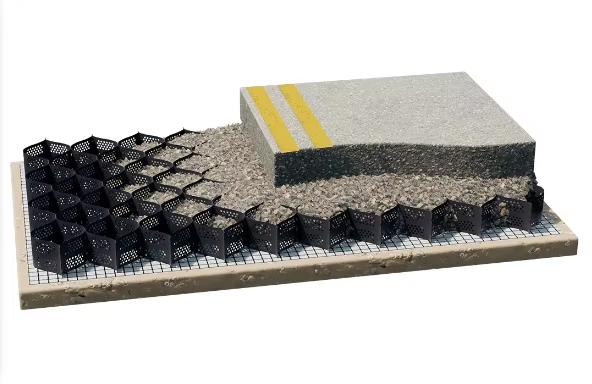

Roadway load support

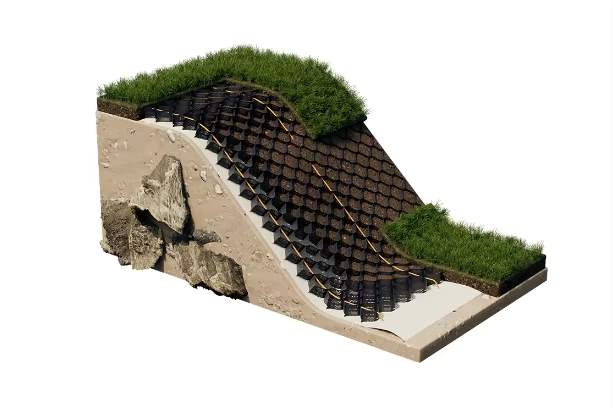

Steep soil slope and channel protection
Earth retention
Reservoirs and landfills
Sustainable construction
Road Construction Geocell Geocell Retaining Walls
Slope Protection Geocell Channel Protection Geocell
